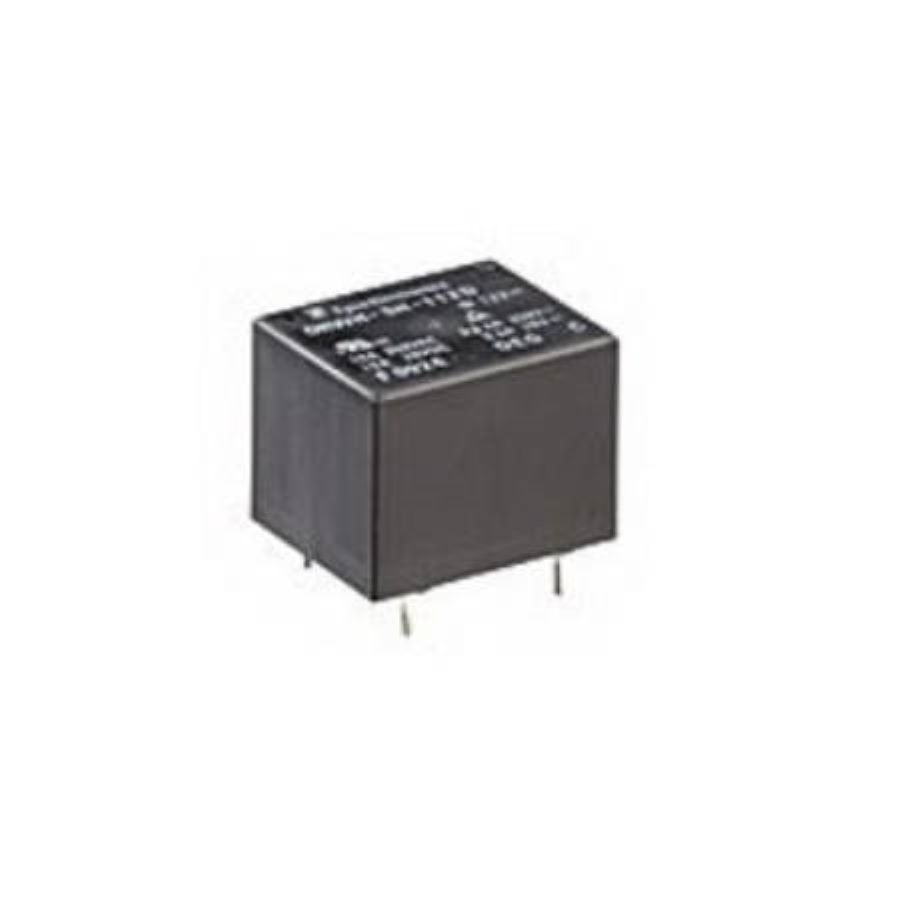

1721150-5
Manufacturer:
TE Connectivity
Mfr.Part #:
1721150-5
Datasheet:
Description:
Power Relays Through Hole 30 mA 12 V General Purpose
| Parameter | Value |
|---|---|
| Length | 19 mm |
| Width | 15.5 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Height | 15.8 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Zinc Oxide (AgZnO) |
| Coil Voltage (DC) | 12 V |
| Coil Current | 30 mA |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Contact Current Rating | 10 A |
| Termination Style | PC Pin |
| Switching Voltage | 277 VAC, 28 VDC |
| Coil Voltage (AC) | 12 V |
| Must Operate Voltage | 8.4 V |
| Must Release Voltage | 1.2 V |
Stock: 6
Distributors
pcbx
pcbxUnit Price$2.42248
Ext.Price$2.42248
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.42248 | $2.42248 |
| 10 | $2.36620 | $23.66200 |
| 25 | $2.32955 | $58.23875 |
